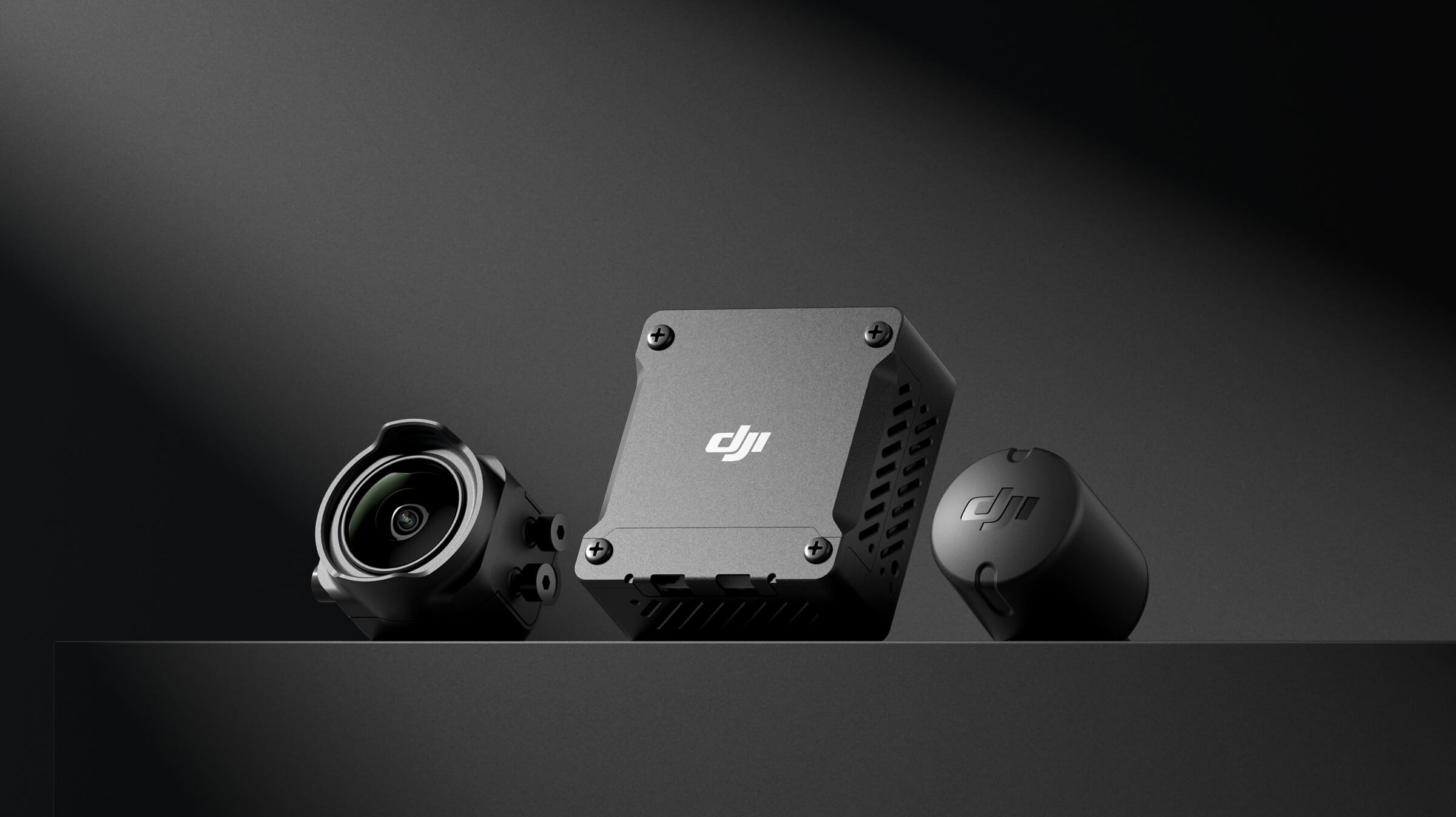

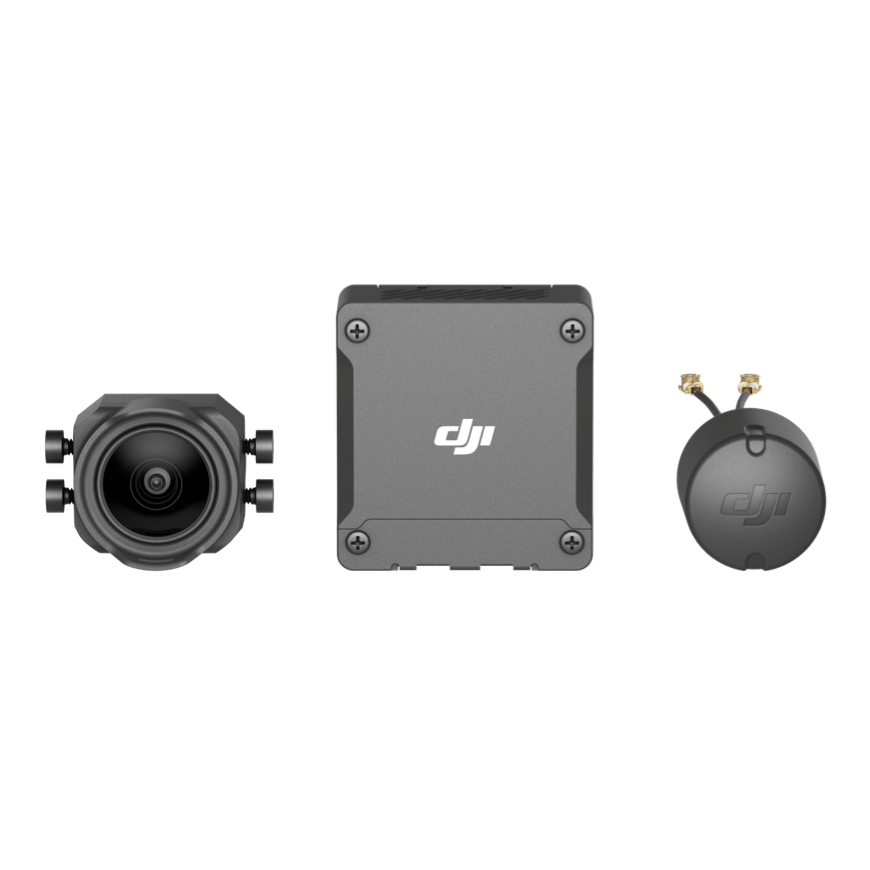

DJI O3 Air Unit

DJI O3 AIR UNIT

Go the Distance

Integrating DJI’s cutting-edge video transmission technology in a compact and lightweight body, the DJI O3 Air Unit takes your FPV experience to new heights. Enjoy excellent high-definition video transmission from extended distances with low latency. The O3 Air Unit takes a leap forward in imaging performance with its 1/1.7-inch sensor, 155° super-wide FOV, flagship video technology, and other upgrades. It is also compatible with a wide range of products and delivers a video transmission solution that helps you to fully release your aerial creativity.

30 ms 10 km
Digital Video Transmission

1080p/100fps
H.265 Video Transmission

4K/120fps
Video

155°
Super-Wide FOV

Frequency Auto-Switching

Canvas Mode

Powered by Flagship Video Transmission

Equipped with DJI O3+ Video Transmission, the DJI O3 Air Unit provides a host of powerful video transmission capabilities. Control your drone with snappy responsiveness and get a crisp, ultra-sharp live feed. The 2T2R omnidirectional antennas further ensure the stability and smoothness of video transmission within the signal coverage range.

1080p/100fps

H.265 Video Transmission

10 km

Max Video Transmission Range

30 ms

Ultra-Low-Latency Video Transmission

50 Mbps

Max Video Transmission Bitrate

Seeing is Believing

The DJI O3 Air Unit features a video transmission resolution of up to 1080p, while maintaining a high frame rate of 100 fps. It also supports the H.265 video coding format, presenting additional clarity and smoothness in your live view.

Go the Extra Mile

Fly farther and explore more with the DJI O3 Air Unit’s extended 10km transmission range. It can even automatically select the frequency band to use the optimal signal, and it delivers excellent anti-interference performance. The stable, long-range connection gives you peace of mind as you fly and lets you enjoy distant scenery in the palm of your hand.

Level-Up Your Visuals

1/1.7-inch Sensor, 12.7mm Equivalent Focal Length, f/2.8 Aperture

The DJI O3 Air Unit features upgraded imaging specs across the board. The air unit camera module is equipped with 20 GB of built-in storage as well as a 1/1.7-inch sensor to present richer details and high-quality imagery. It supports 4K/120fps video and shoots 155° super-wide FOV footage for stunning visual effects. In addition, D-Cinelike color mode provides more creative freedom for color grading, allowing you to more flexibly edit and adjust your footage.

155° Super-Wide FOV

Immerse your audience with the 155° FOV as you capture more of the landscape around you.

4K/120fps Video

Film stable ultra-HD footage at 4K/120fps and elevate your FPV footage to new levels.

D-Cinelike Color Mode

Dive into a world of colors by shooting in D-Cinelike mode. Make your footage pop with advanced color grading in post-editing.

Elevate Your Creations

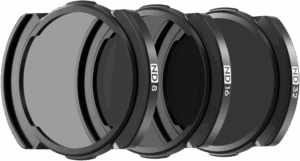

The O3 Air Unit camera module can be used with the DJI Avata ND Filters Set (ND8/16/32). Made of high-quality materials, the ND filters present true color details and light-dark contrast, providing flexible aperture control and exposure selection.

Fine Tune Your Experience

The DJI O3 Air Unit supports Canvas mode, allowing you to customize the on-screen display information of your DJI Goggles 2 or DJI FPV Goggles V2. Adjust the PID parameters and set up the system to suit your style.

Packed with Power

The DJI O3 Air Unit offers vast compatibility in a lightweight and compact body for flexible combinations and assembly. When used with DJI Goggles 2 and DJI FPV Remote Controller 2, you can enjoy complete mobility.

Approx. 36.4 g

Air Unit Weight (camera module included)

32.5×30.5×14.5 mm

Air Unit Dimensions

21.2×20×19.5 mm

Camera Module Dimensions

Compatible with Multiple DJI Devices

Now compatible with DJI Goggles 3, DJI FPV Remote Controller 3, and DJI Goggles Integra.

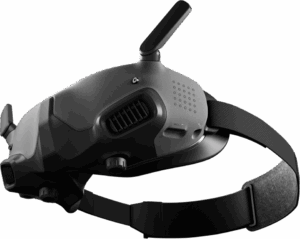

DJI Goggles 2

Enjoy next-level comfort and convenience with DJI Goggles 2. Now smaller, lighter, and equipped with Micro-OLED screens so you experience outstanding clarity as you navigate the sky.

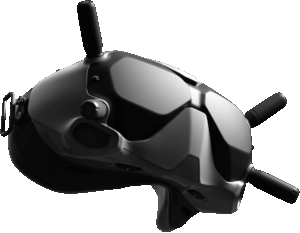

DJI FPV Goggles V2

Featuring DJI O3 image transmission for high-definition, low-latency, long-distance transmission, and strong anti-interference capabilities.

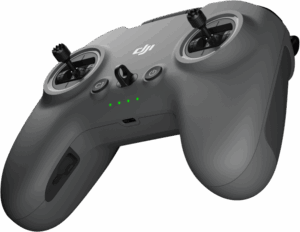

DJI FPV Remote Controller 2

The ultra-low-latency remote features Hall effect control sticks with an ergonomic design to offer high-accuracy control. Unlock M Mode to fly with freedom and achieve more advanced maneuvers.
